Beam Dimensions:

Horizontal FWHM
Click the graph to see a more detailed image.
6.106cm

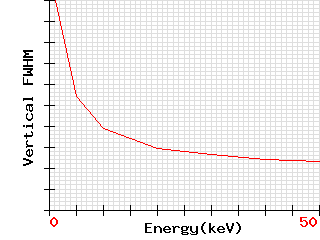

Vertical FWHM
X E(keV) 1 5 10 20 30 40 50
Y FWHM (cm) 1.25 0.677 0.487 0.368 0.330 0.304 0.289




Beam Divergence:



Horizontal divergence FWHM
Click the graph to see a more detailed image.
2.55 x 10-3 rad

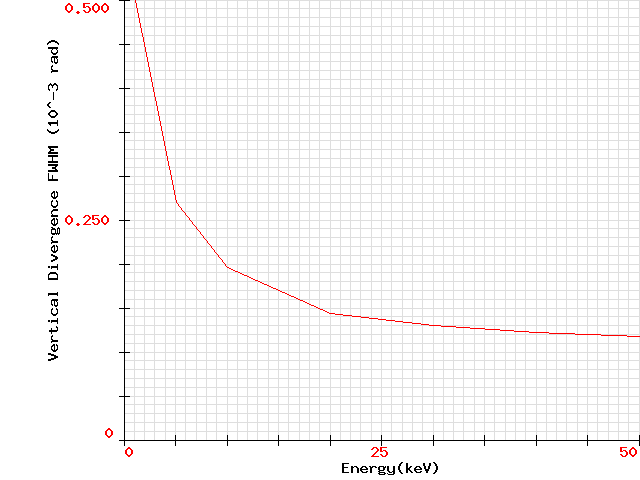

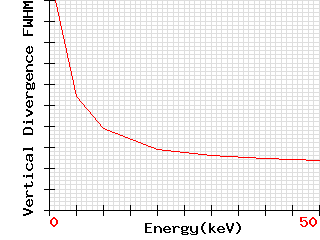

Vertical divergence FWHM
X E(keV) 1 5 10 20 30 40 50
Y FWHM (10-3 rad) 0.500 0.271 0.196 0.144 0.130 0.123 0.118
