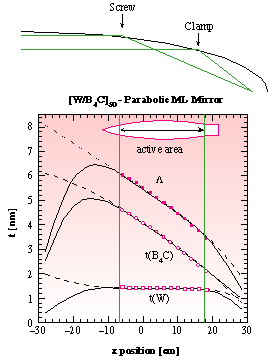

Fig. 136: Thickness profiles of W, B4C and the period L along the length of the substrate shown at the top. Broken lines represent the ideal gradient and solid lines the best achievable experimental approach under the given machine constraints. Within the active area there is excellent agreement with the experimental data (squares and circles).
