fr.esrf.tangoatk.widget.util.jdraw
Class JDRoundRectangle

java.lang.Object
  fr.esrf.tangoatk.widget.util.jdraw.JDObject
      fr.esrf.tangoatk.widget.util.jdraw.JDRectangular
          fr.esrf.tangoatk.widget.util.jdraw.JDRoundRectangle

public class JDRoundRectangle
extends JDRectangular

JDraw Rectangle graphic object.

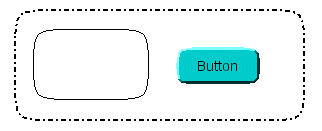

Here is an example of few JDRoundRectangle:

Field Summary

Fields inherited from class fr.esrf.tangoatk.widget.util.jdraw.JDObject

FILL_STYLE_DOT_PATTERN_1, FILL_STYLE_DOT_PATTERN_2, FILL_STYLE_DOT_PATTERN_3, FILL_STYLE_GRADIENT, FILL_STYLE_LARGE_CROSS_HATCH, FILL_STYLE_LARGE_LEFT_HATCH, FILL_STYLE_LARGE_RIGHT_HATCH, FILL_STYLE_NONE, FILL_STYLE_SMALL_CROSS_HATCH, FILL_STYLE_SMALL_LEFT_HATCH, FILL_STYLE_SMALL_RIGHT_HATCH, FILL_STYLE_SOLID, LINE_STYLE_DASH, LINE_STYLE_DASH_DOT, LINE_STYLE_DOT, LINE_STYLE_LONG_DASH, LINE_STYLE_SOLID, VALUE_CHANGE_ON_XDRAG_LEFT, VALUE_CHANGE_ON_XDRAG_RIGHT, VALUE_CHANGE_ON_YDRAG_BOTTOM, VALUE_CHANGE_ON_YDRAG_TOP, VALUE_INC_ON_CLICK, VALUE_INC_ON_PRESSRELEASE

Constructor Summary

JDRoundRectangle(java.lang.String objectName, int x, int y, int w, int h)
Contructs a JDRoundRectangle.

Method Summary

JDPolyline	convertToPolyline() Convert this object to a JDPolyline
JDObject	copy(int x, int y) Returns a copy of this object at the specified location.
int	getCornerWidth() Returns the rouded corner width.
int	getStep() Returns the interpolation of rounded corner.
boolean	isInsideObject(int x, int y) Determines whether the specified point is inside this object.
void	setCornerWidth(int w) Sets the rounded corner width.
void	setStep(int s) Sets the interpolation step of the rounded corner.

Methods inherited from class fr.esrf.tangoatk.widget.util.jdraw.JDRectangular

moveSummit, paint, rotate90

Methods inherited from class fr.esrf.tangoatk.widget.util.jdraw.JDObject

addExtension, addMouseListener, addValueListener, centerOrigin, clearMouseListener, clearValueListener, getBackground, getBackgroundMapper, getBoundRect, getExtendedParam, getExtendedParam, getExtendedParamDesc, getExtendedParamIndex, getExtendedParamName, getExtendedParamNumber, getFillStyle, getForeground, getForegroundMapper, getHTranslationMapper, getInitValue, getInvertShadowMapper, getLineStyle, getLineWidth, getMaxValue, getMinValue, getName, getObjectsByName, getOrigin, getShadowWidth, getSummit, getSummitNumber, getValue, getValueChangeMode, getVisibilityMapper, getVTranslationMapper, hasBackgroundMapper, hasExtendedParam, hasForegroundMapper, hasHTranslationMapper, hasInverseShadow, hasInvertShadowMapper, hasShadow, hasVisibilityMapper, hasVTranslationMapper, isAntiAliased, isFixedExtendedParam, isInteractive, isProgrammed, isVisible, moveSummitH, moveSummitV, preRefresh, refresh, removeExtension, removeMouseListener, removeValueListener, restoreTransform, saveTransform, scale, scaleTranslate, setAntiAlias, setBackground, setBackgroundMapper, setExtendedParam, setExtendedParam, setExtensionList, setFillStyle, setForeground, setForegroundMapper, setGradientFillParam, setHTranslationMapper, setInitValue, setInteractive, setInverseShadow, setInvertShadowMapper, setLineStyle, setLineWidth, setMaxValue, setMinValue, setName, setOrigin, setShadow, setShadowWidth, setValue, setValueChangeMode, setVisibilityMapper, setVisible, setVTranslationMapper, toString, translate

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Constructor Detail

JDRoundRectangle

public JDRoundRectangle(java.lang.String objectName,
                        int x,
                        int y,
                        int w,
                        int h)

Contructs a JDRoundRectangle.

Parameters:

objectName - Object name

x - Up left corner x coordinate

y - Up left corner y coordinate

w - Rectangle width

h - Rectangle height

Method Detail

copy

public JDObject copy(int x,
                     int y)

Description copied from class: JDObject

Returns a copy of this object at the specified location.

Specified by:

copy in class JDObject

Parameters:

x - Horizontal position of the copied object (pixel)

y - Vertical Position of the copied object (pixel)

Returns:

The copy of this object.

isInsideObject

public boolean isInsideObject(int x,
                              int y)

Description copied from class: JDObject

Determines whether the specified point is inside this object.

Overrides:

isInsideObject in class JDObject

Parameters:

x - X coordinate (pixel)

y - Y coordinate (pixel)

convertToPolyline

public JDPolyline convertToPolyline()

Convert this object to a JDPolyline

getStep

public int getStep()

Returns the interpolation of rounded corner.

See Also:

setStep(int)

setStep

public void setStep(int s)

Sets the interpolation step of the rounded corner.

Parameters:

s - Interpolation step

getCornerWidth

public int getCornerWidth()

Returns the rouded corner width.

See Also:

setCornerWidth(int)

setCornerWidth

public void setCornerWidth(int w)

Sets the rounded corner width.

Parameters:

w - Corner width
