fr.esrf.tangoatk.widget.util.jdraw
Class JDGroup

java.lang.Object
  fr.esrf.tangoatk.widget.util.jdraw.JDObject
      fr.esrf.tangoatk.widget.util.jdraw.JDRectangular
          fr.esrf.tangoatk.widget.util.jdraw.JDGroup

public class JDGroup
extends JDRectangular

JDraw Group graphic object. A group can contains all JDObject including group. If the group is scaled, all object within this group will also be scaled.

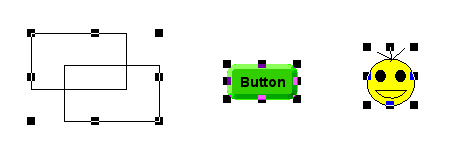

Here is an exmaple of few group :

Field Summary

Fields inherited from class fr.esrf.tangoatk.widget.util.jdraw.JDObject

FILL_STYLE_DOT_PATTERN_1, FILL_STYLE_DOT_PATTERN_2, FILL_STYLE_DOT_PATTERN_3, FILL_STYLE_GRADIENT, FILL_STYLE_LARGE_CROSS_HATCH, FILL_STYLE_LARGE_LEFT_HATCH, FILL_STYLE_LARGE_RIGHT_HATCH, FILL_STYLE_NONE, FILL_STYLE_SMALL_CROSS_HATCH, FILL_STYLE_SMALL_LEFT_HATCH, FILL_STYLE_SMALL_RIGHT_HATCH, FILL_STYLE_SOLID, LINE_STYLE_DASH, LINE_STYLE_DASH_DOT, LINE_STYLE_DOT, LINE_STYLE_LONG_DASH, LINE_STYLE_SOLID, VALUE_CHANGE_ON_XDRAG_LEFT, VALUE_CHANGE_ON_XDRAG_RIGHT, VALUE_CHANGE_ON_YDRAG_BOTTOM, VALUE_CHANGE_ON_YDRAG_TOP, VALUE_INC_ON_CLICK, VALUE_INC_ON_PRESSRELEASE

Constructor Summary

JDGroup(java.lang.String objectName, java.util.Vector o)
Construct a group.

Method Summary

JDObject	copy(int x, int y) Returns a copy of this object at the specified location.
void	generateJavaClass(java.io.FileWriter f) Generates a Java class capable to paint this object using only java awt functions.
JDObject	getChildAt(int idx) Returns the child at the specifed position.
java.util.Vector	getChildren() Returns a Vector containing all children of this group.
int	getChildrenNumber() Returns the number of child of this group.
void	getObjectsByName(java.util.Vector result, java.lang.String name, boolean recurseGroup) Returns all objects having the given name.
boolean	isInsideObject(int x, int y) Determines whether the specified point is inside this object.
boolean	isProgrammed() Determines whether this object has a programmed behavior.
void	moveSummit(int id, double x, double y) Moves the specifed summit to the specified position.
void	paint(JDrawEditor parent, java.awt.Graphics g) Paints this object.
void	restoreTransform() Restore original shape previously backuped by saveTransform
void	rotate90(double x, double y) Rotate the object by 90deg.
void	saveTransform() Backup the shape.
void	setAntiAlias(boolean alias) Sets the anti aliasing for all objects of this group
void	setBackground(java.awt.Color c) Sets the background of this group, Apply it on all children.
void	setChildrenList(java.util.Vector o) Sets the children of this group.
void	setFillStyle(int s) Sets the fill style of this group, Apply it on all children.
void	setForeground(java.awt.Color c) Sets the foreground of this group, Apply it on all children.
void	setInitValue(int v) Sets the init value of this object.
void	setInverseShadow(boolean b) Sets the inverse shadow of this group, Apply it on all children.
void	setLineStyle(int s) Sets the line style of this group, Apply it on all children.
void	setLineWidth(int w) Sets the line width of this group, Apply it on all children.
void	setMaxValue(int v) Sets the max value of this object.
void	setMinValue(int v) Sets the minimum value of this object.
void	setShadow(boolean b) Sets the shadow of this group, Apply it on all children.
void	setShadowWidth(int w) Sets the shadow width of this group, Apply it on all children.
void	setVisible(boolean b) Shows or hides this object, Apply it on all children.

Methods inherited from class fr.esrf.tangoatk.widget.util.jdraw.JDObject

addExtension, addMouseListener, addValueListener, centerOrigin, clearMouseListener, clearValueListener, getBackground, getBackgroundMapper, getBoundRect, getExtendedParam, getExtendedParam, getExtendedParamDesc, getExtendedParamIndex, getExtendedParamName, getExtendedParamNumber, getFillStyle, getForeground, getForegroundMapper, getHTranslationMapper, getInitValue, getInvertShadowMapper, getLineStyle, getLineWidth, getMaxValue, getMinValue, getName, getOrigin, getShadowWidth, getSummit, getSummitNumber, getValue, getValueChangeMode, getVisibilityMapper, getVTranslationMapper, hasBackgroundMapper, hasExtendedParam, hasForegroundMapper, hasHTranslationMapper, hasInverseShadow, hasInvertShadowMapper, hasShadow, hasVisibilityMapper, hasVTranslationMapper, isAntiAliased, isFixedExtendedParam, isInteractive, isVisible, moveSummitH, moveSummitV, preRefresh, refresh, removeExtension, removeMouseListener, removeValueListener, scale, scaleTranslate, setBackgroundMapper, setExtendedParam, setExtendedParam, setExtensionList, setForegroundMapper, setGradientFillParam, setHTranslationMapper, setInteractive, setInvertShadowMapper, setName, setOrigin, setValue, setValueChangeMode, setVisibilityMapper, setVTranslationMapper, toString, translate

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Constructor Detail

JDGroup

public JDGroup(java.lang.String objectName,
               java.util.Vector o)

Construct a group.

Parameters:

objectName - Group name.

o - Vector of JDObject to be grouped.

Method Detail

copy

public JDObject copy(int x,
                     int y)

Description copied from class: JDObject

Returns a copy of this object at the specified location.

Specified by:

copy in class JDObject

Parameters:

x - Horizontal position of the copied object (pixel)

y - Vertical Position of the copied object (pixel)

Returns:

The copy of this object.

paint

public void paint(JDrawEditor parent,
                  java.awt.Graphics g)

Description copied from class: JDObject

Paints this object.

Overrides:

paint in class JDRectangular

Parameters:

parent - JdrawEditor parent (Can be null except for JDSwingObject)

g - the specified Graphics window

isInsideObject

public boolean isInsideObject(int x,
                              int y)

Description copied from class: JDObject

Determines whether the specified point is inside this object.

Overrides:

isInsideObject in class JDObject

Parameters:

x - X coordinate (pixel)

y - Y coordinate (pixel)

restoreTransform

public void restoreTransform()

Description copied from class: JDObject

Restore original shape previously backuped by saveTransform

Overrides:

restoreTransform in class JDObject

See Also:

JDObject.saveTransform()

saveTransform

public void saveTransform()

Description copied from class: JDObject

Backup the shape. This can be usefull when making scaling animation, after multiple scale the rounding may result in deformed shape. To avoid this you can use saveTransform() and restoreTransform(). Note: This is done once when JDrawEditor.loadFile() is called().

Overrides:

saveTransform in class JDObject

See Also:

JDObject.restoreTransform()

rotate90

public void rotate90(double x,
                     double y)

Description copied from class: JDObject

Rotate the object by 90deg. A call to refresh() is needed after transformation.

Overrides:

rotate90 in class JDRectangular

Parameters:

x - Rotation center horizontal pos

y - Rotation center vertical pos

See Also:

JDObject.refresh()

moveSummit

public void moveSummit(int id,
                       double x,
                       double y)

Description copied from class: JDObject

Moves the specifed summit to the specified position. When using moveSummit() to animate objects, A call to refresh() of this object may be needed.

Overrides:

moveSummit in class JDRectangular

Parameters:

id - Summit index

x - Absolute X position

y - Absolute Y position

See Also:

JDObject.refresh()

setBackground

public void setBackground(java.awt.Color c)

Sets the background of this group, Apply it on all children.

Overrides:

setBackground in class JDObject

Parameters:

c - Background color.

See Also:

JDObject.setBackground(java.awt.Color)

setForeground

public void setForeground(java.awt.Color c)

Sets the foreground of this group, Apply it on all children.

Overrides:

setForeground in class JDObject

Parameters:

c - Foreground color.

See Also:

JDObject.setForeground(java.awt.Color)

setFillStyle

public void setFillStyle(int s)

Sets the fill style of this group, Apply it on all children.

Overrides:

setFillStyle in class JDObject

Parameters:

s - Fill style.

See Also:

JDObject.setFillStyle(int)

setLineStyle

public void setLineStyle(int s)

Sets the line style of this group, Apply it on all children.

Overrides:

setLineStyle in class JDObject

Parameters:

s - Line style.

See Also:

JDObject.setLineStyle(int)

setAntiAlias

public void setAntiAlias(boolean alias)

Sets the anti aliasing for all objects of this group

Overrides:

setAntiAlias in class JDObject

Parameters:

alias - Anti alias

See Also:

JDObject.setAntiAlias(boolean)

setLineWidth

public void setLineWidth(int w)

Sets the line width of this group, Apply it on all children.

Overrides:

setLineWidth in class JDObject

Parameters:

w - Line width.

See Also:

JDObject.setLineWidth(int)

setShadow

public void setShadow(boolean b)

Sets the shadow of this group, Apply it on all children.

Overrides:

setShadow in class JDObject

Parameters:

b - Shadow flag.

See Also:

JDObject.setShadow(boolean)

setVisible

public void setVisible(boolean b)

Shows or hides this object, Apply it on all children.

Overrides:

setVisible in class JDObject

Parameters:

b - True to show, false otherwise.

setInverseShadow

public void setInverseShadow(boolean b)

Sets the inverse shadow of this group, Apply it on all children.

Overrides:

setInverseShadow in class JDObject

Parameters:

b - Invert shadow flag.

See Also:

JDObject.setInverseShadow(boolean)

setShadowWidth

public void setShadowWidth(int w)

Sets the shadow width of this group, Apply it on all children.

Overrides:

setShadowWidth in class JDObject

Parameters:

w - Shadow width.

See Also:

JDObject.setShadowWidth(int)

setMinValue

public void setMinValue(int v)

Description copied from class: JDObject

Sets the minimum value of this object.

Overrides:

setMinValue in class JDObject

Parameters:

v - Min value

See Also:

JDObject.setInitValue(int), JDObject.setMaxValue(int), JDObject.setValue(int)

setMaxValue

public void setMaxValue(int v)

Description copied from class: JDObject

Sets the max value of this object.

Overrides:

setMaxValue in class JDObject

Parameters:

v - Max value

See Also:

JDObject.setInitValue(int), JDObject.setMinValue(int), JDObject.setValue(int)

setInitValue

public void setInitValue(int v)

Description copied from class: JDObject

Sets the init value of this object.

Overrides:

setInitValue in class JDObject

Parameters:

v - Initial value object.

See Also:

JDObject.setMaxValue(int), JDObject.setMinValue(int), JDObject.setValue(int)

getObjectsByName

public void getObjectsByName(java.util.Vector result,
                             java.lang.String name,
                             boolean recurseGroup)

Description copied from class: JDObject

Returns all objects having the given name.

Overrides:

getObjectsByName in class JDObject

Parameters:

result - Result vector (must be constructed by the caller)

name - JDObject name (Case sensitive)

recurseGroup - true to perform a deep search whithin group, false otherwise.

See Also:

JDrawEditor.getObjectsByName(java.lang.String, boolean)

isProgrammed

public boolean isProgrammed()

Description copied from class: JDObject

Determines whether this object has a programmed behavior. If this object is a JDGroup, the function return true if at least one of grouped JDObject is programmed.

Overrides:

isProgrammed in class JDObject

See Also:

JDObject.setValue(int)

getChildAt

public JDObject getChildAt(int idx)

Returns the child at the specifed position.

Parameters:

idx - Child index

getChildrenNumber

public int getChildrenNumber()

Returns the number of child of this group.

setChildrenList

public void setChildrenList(java.util.Vector o)

Sets the children of this group.

Parameters:

o - Vector of JDObject to be grouped.

getChildren

public java.util.Vector getChildren()

Returns a Vector containing all children of this group.

generateJavaClass

public void generateJavaClass(java.io.FileWriter f)
                       throws java.io.IOException

Generates a Java class capable to paint this object using only java awt functions. It supports only Line and Polyline (or shape that can be converted to polyline) and not all functionality of the JDObject are suppported. Nevertheless, the code keeps the vectorial sizing behavior. Note: All objects named 'body' will have their background color overrided by the color passed to the generated paint() function.

Parameters:

f - file to be saved

Throws:

java.io.IOException
