fr.esrf.tangoatk.widget.util.jdraw
Class JDEllipse

java.lang.Object
  fr.esrf.tangoatk.widget.util.jdraw.JDObject
      fr.esrf.tangoatk.widget.util.jdraw.JDRectangular
          fr.esrf.tangoatk.widget.util.jdraw.JDEllipse

public class JDEllipse
extends JDRectangular

JDraw Ellipse graphic object.

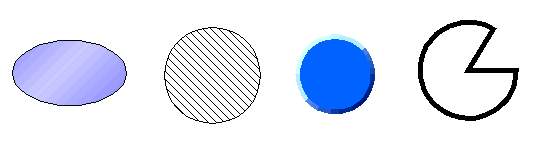

Here is an example of few JDEllipse:

Field Summary

static int	ARC_CLOSED Closed arc
static int	ARC_OPEN Opened arc
static int	ARC_PIE Pie arc

Fields inherited from class fr.esrf.tangoatk.widget.util.jdraw.JDObject

FILL_STYLE_DOT_PATTERN_1, FILL_STYLE_DOT_PATTERN_2, FILL_STYLE_DOT_PATTERN_3, FILL_STYLE_GRADIENT, FILL_STYLE_LARGE_CROSS_HATCH, FILL_STYLE_LARGE_LEFT_HATCH, FILL_STYLE_LARGE_RIGHT_HATCH, FILL_STYLE_NONE, FILL_STYLE_SMALL_CROSS_HATCH, FILL_STYLE_SMALL_LEFT_HATCH, FILL_STYLE_SMALL_RIGHT_HATCH, FILL_STYLE_SOLID, LINE_STYLE_DASH, LINE_STYLE_DASH_DOT, LINE_STYLE_DOT, LINE_STYLE_LONG_DASH, LINE_STYLE_SOLID, VALUE_CHANGE_ON_XDRAG_LEFT, VALUE_CHANGE_ON_XDRAG_RIGHT, VALUE_CHANGE_ON_YDRAG_BOTTOM, VALUE_CHANGE_ON_YDRAG_TOP, VALUE_INC_ON_CLICK, VALUE_INC_ON_PRESSRELEASE

Constructor Summary

JDEllipse(java.lang.String objectName, int x, int y, int w, int h)
Construct a JDEllipse.

Method Summary

JDPolyline	convertToPolyline() Convert this object to a JDPolyline
JDObject	copy(int x, int y) Returns a copy of this object at the specified location.
int	getAngleExtent() Returns the arc angle extent.
int	getAngleStart() Returns the starting angle of the arc.
int	getArcType() Returns the current arc type.
int	getStep() Returns the interpolation step.
boolean	isInsideObject(int x, int y) Determines whether the specified point is inside this object.
void	paint(JDrawEditor parent, java.awt.Graphics g) Paints this object.
void	restoreTransform() Restore original shape previously backuped by saveTransform
void	rotate90(double x, double y) Rotate the object by 90deg.
void	saveTransform() Backup the shape.
void	setAngleExtent(int a) Sets the arc angle extent.
void	setAngleStart(int a) Sets the starting angle of the arc.
void	setArcType(int type) Sets the arc type for this ellipse.
void	setStep(int s) Sets the interpolation step of this ellispe.

Methods inherited from class fr.esrf.tangoatk.widget.util.jdraw.JDRectangular

moveSummit

Methods inherited from class fr.esrf.tangoatk.widget.util.jdraw.JDObject

addExtension, addMouseListener, addValueListener, centerOrigin, clearMouseListener, clearValueListener, getBackground, getBackgroundMapper, getBoundRect, getExtendedParam, getExtendedParam, getExtendedParamDesc, getExtendedParamIndex, getExtendedParamName, getExtendedParamNumber, getFillStyle, getForeground, getForegroundMapper, getHTranslationMapper, getInitValue, getInvertShadowMapper, getLineStyle, getLineWidth, getMaxValue, getMinValue, getName, getObjectsByName, getOrigin, getShadowWidth, getSummit, getSummitNumber, getValue, getValueChangeMode, getVisibilityMapper, getVTranslationMapper, hasBackgroundMapper, hasExtendedParam, hasForegroundMapper, hasHTranslationMapper, hasInverseShadow, hasInvertShadowMapper, hasShadow, hasVisibilityMapper, hasVTranslationMapper, isAntiAliased, isFixedExtendedParam, isInteractive, isProgrammed, isVisible, moveSummitH, moveSummitV, preRefresh, refresh, removeExtension, removeMouseListener, removeValueListener, scale, scaleTranslate, setAntiAlias, setBackground, setBackgroundMapper, setExtendedParam, setExtendedParam, setExtensionList, setFillStyle, setForeground, setForegroundMapper, setGradientFillParam, setHTranslationMapper, setInitValue, setInteractive, setInverseShadow, setInvertShadowMapper, setLineStyle, setLineWidth, setMaxValue, setMinValue, setName, setOrigin, setShadow, setShadowWidth, setValue, setValueChangeMode, setVisibilityMapper, setVisible, setVTranslationMapper, toString, translate

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

ARC_OPEN

public static final int ARC_OPEN

Opened arc

See Also:

Constant Field Values

ARC_CLOSED

public static final int ARC_CLOSED

Closed arc

See Also:

Constant Field Values

ARC_PIE

public static final int ARC_PIE

Pie arc

See Also:

Constant Field Values

Constructor Detail

JDEllipse

public JDEllipse(java.lang.String objectName,
                 int x,
                 int y,
                 int w,
                 int h)

Construct a JDEllipse.

Parameters:

objectName -

x - Up left corner x coordinate

y - Up left corner y coordinate

w - Ellipse width

h - Ellipse height

Method Detail

copy

public JDObject copy(int x,
                     int y)

Description copied from class: JDObject

Returns a copy of this object at the specified location.

Specified by:

copy in class JDObject

Parameters:

x - Horizontal position of the copied object (pixel)

y - Vertical Position of the copied object (pixel)

Returns:

The copy of this object.

isInsideObject

public boolean isInsideObject(int x,
                              int y)

Description copied from class: JDObject

Determines whether the specified point is inside this object.

Overrides:

isInsideObject in class JDObject

Parameters:

x - X coordinate (pixel)

y - Y coordinate (pixel)

convertToPolyline

public JDPolyline convertToPolyline()

Convert this object to a JDPolyline

rotate90

public void rotate90(double x,
                     double y)

Description copied from class: JDObject

Rotate the object by 90deg. A call to refresh() is needed after transformation.

Overrides:

rotate90 in class JDRectangular

Parameters:

x - Rotation center horizontal pos

y - Rotation center vertical pos

See Also:

JDObject.refresh()

restoreTransform

public void restoreTransform()

Description copied from class: JDObject

Restore original shape previously backuped by saveTransform

Overrides:

restoreTransform in class JDObject

See Also:

JDObject.saveTransform()

saveTransform

public void saveTransform()

Description copied from class: JDObject

Backup the shape. This can be usefull when making scaling animation, after multiple scale the rounding may result in deformed shape. To avoid this you can use saveTransform() and restoreTransform(). Note: This is done once when JDrawEditor.loadFile() is called().

Overrides:

saveTransform in class JDObject

See Also:

JDObject.restoreTransform()

setStep

public void setStep(int s)

Sets the interpolation step of this ellispe.

Parameters:

s - Interpolation step (Default is 10)

getStep

public int getStep()

Returns the interpolation step.

See Also:

setStep(int)

setArcType

public void setArcType(int type)

Sets the arc type for this ellipse.

Parameters:

type - Arc type

See Also:

ARC_OPEN, ARC_CLOSED, ARC_PIE

getArcType

public int getArcType()

Returns the current arc type.

See Also:

setArcType(int)

setAngleStart

public void setAngleStart(int a)

Sets the starting angle of the arc.

Parameters:

a - Angle in degrees.

getAngleStart

public int getAngleStart()

Returns the starting angle of the arc.

See Also:

setAngleStart(int)

setAngleExtent

public void setAngleExtent(int a)

Sets the arc angle extent.

Parameters:

a - Angle extent in degrees.

getAngleExtent

public int getAngleExtent()

Returns the arc angle extent.

See Also:

setAngleExtent(int)

paint

public void paint(JDrawEditor parent,
                  java.awt.Graphics g)

Description copied from class: JDObject

Paints this object.

Overrides:

paint in class JDRectangular

Parameters:

parent - JdrawEditor parent (Can be null except for JDSwingObject)

g - the specified Graphics window
