fr.esrf.tangoatk.widget.util.interlock
Class NetObject

java.lang.Object
  fr.esrf.tangoatk.widget.util.interlock.NetObject

public class NetObject
extends java.lang.Object

Class which allow to control and display an object of the network. It exists 2 types of object :

The bubble object which is the main object . A bubble accept a free label that can be moved by the user , 2 small fixed labels (one centered and one at the bottom left) and can have extensions : A list of named parameters associated to a string value. You can also specifie the maximum number of incoming/outgoing links and its shape. The coordinates of a bubble are in GRID unit.

The text object which is a free label moveable by the user. You can also specify a font for this object. The text object does not accept links , extensions , small fixed labels and shape. The coordinates for a text object a in pixel.

Important: It is not recommended to subclass this NetObject class because it would be too complex to provide a full overridable interface including file,undo and clipboard management. Nevertheless, when using the NetEditor in non editable mode, it is possible either to override NetEditor.loadFile() or NetEditor.addObject() to convert loaded NetObject into a new type. As there is no undo or clipboard operation, your objects will not be affected.

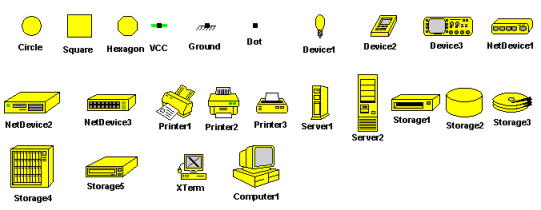

Here are the possible bubble shapes:

Field Summary

static int	JUSTIFY_CENTER Center label justification
static int	JUSTIFY_LEFT Left label justification
static int	JUSTIFY_RIGHT Right label justification
static int	OBJECT_BUBBLE Bubble pbject
static int	OBJECT_TEXT Free label object

Constructor Summary

NetObject(int type, int userType, int maxInput, int maxOutput, int x, int y)
Construct a NetObject.

Method Summary

void	addChild(NetObject o) Add the given object to the children list.
void	clearChildren() Clear the children list
NetObject	getChildAt(int idx) Returns child at the specified index.
int	getChildrenNumber() Returns the number of children.
java.awt.Color	getColor() Gets the background (fill color) of this object (when parent NetEditor is not editable)
java.lang.String	getExtendedParam(int extIdx) Returns the value of the specified extended param, an empty string if not found.
java.lang.String	getExtendedParam(java.lang.String name) Returns the value of the specified extended param, an empty string if not found.
int	getExtendedParamIndex(java.lang.String name) Returns the index of the specified extended param , -1 when not found
int	getExtendedParamNumber() Returns the number of extensions
int	getJustify() Returns current justification
java.lang.String	getLabel() Returns the label
int	getMaxInput() Returns maximum number of incoming link
int	getMaxOutput() Returns maximum number of outgoing link
java.lang.String	getName() Get object name.
NetObject	getParentAt(int idx) Returns the parent object at the specified index.
int	getParentNumber() Returns the number of parent
boolean	getSelected()
int	getShape() Returns shape of this object
int	getSize() Gets the object size
java.awt.Font	getTextFont() Get the font of this object
int	getType() Return the type of this NetObject.
int	getUserType() Returns the user defined type.
java.lang.Object	getUserValue() Returns the user value
int	getXOrigin() Returns X pixel coordinates.Returns a valid value only if this object has been inserted in a NetEditor.
int	getYOrigin() Returns Y pixel coordinates.Returns a valid value only if this object has been inserted in a NetEditor.
boolean	isChildOf(NetObject o) Returns true if this object is child of o
boolean	isParentOf(NetObject o) Returns true if this object is parent of o
void	paint(java.awt.Graphics2D g) Paint this NetObject.
void	paintLink(java.awt.Graphics2D g, NetObject child, boolean drawArrow) Paint the link beetween this object and child.
void	removeChild(int i) Remove the specified child from the children list.
void	removeChild(NetObject o) Remove the specified child from the children list.
void	setBottomLabel(java.lang.String s) Sets the label displayed at the bottom left of this object.
void	setCenterLabel(java.lang.String s) Sets the label displayed at the center of this object.
void	setColor(java.awt.Color c) Sets the background (fill color) of this object (when parent NetEditor is not editable)
void	setEditableShape(boolean b) Set the editable shape properties.
void	setExtendedParam(int extIdx, java.lang.String value) Sets the extended param value.
void	setExtendedParam(java.lang.String name, java.lang.String value) Sets the extended param value.
void	setExtensionList(java.lang.String[] names) Sets the list of extended parameter name for this bubble object.
void	setJustify(int i) Sets the label justification of this object.
void	setLabel(java.lang.String value) Sets the free label of this object.
void	setLabel(java.lang.String[] value) Sets the free lablel
void	setSelected(boolean s) Select or not this NetObject within the editor.
void	setShape(int s) Sets the shape of this object
void	setSize(int size) Sets the object size
void	setTextFont(java.awt.Font f) Set the font of this object.
void	setUserValue(java.lang.Object v) Sets the user value for external usage

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

OBJECT_BUBBLE

public static final int OBJECT_BUBBLE

Bubble pbject

See Also:

Constant Field Values

OBJECT_TEXT

public static final int OBJECT_TEXT

Free label object

See Also:

Constant Field Values

JUSTIFY_LEFT

public static final int JUSTIFY_LEFT

Left label justification

See Also:

Constant Field Values

JUSTIFY_RIGHT

public static final int JUSTIFY_RIGHT

Right label justification

See Also:

Constant Field Values

JUSTIFY_CENTER

public static final int JUSTIFY_CENTER

Center label justification

See Also:

Constant Field Values

Constructor Detail

NetObject

public NetObject(int type,
                 int userType,
                 int maxInput,
                 int maxOutput,
                 int x,
                 int y)

Construct a NetObject.

Parameters:

type - Type of this NetObject

userType - User defined type of this NetObject

maxInput - Maximum number of incoming link for this bubble

maxOutput - Maximum number of outgoing link for this bubble

x - x coordinates (GRID coordinates for BUBBLE , pixel for TEXT)

y - y coordinates ...

See Also:

OBJECT_BUBBLE, OBJECT_TEXT

Method Detail

addChild

public void addChild(NetObject o)

Add the given object to the children list.

Parameters:

o - Child object

removeChild

public void removeChild(NetObject o)

Remove the specified child from the children list.

Parameters:

o - Child object to remove

removeChild

public void removeChild(int i)

Remove the specified child from the children list.

Parameters:

i - Child index

getChildrenNumber

public int getChildrenNumber()

Returns the number of children.

getChildAt

public NetObject getChildAt(int idx)

Returns child at the specified index.

Parameters:

idx - Child index

Returns:

Child NetObject

clearChildren

public void clearChildren()

Clear the children list

getParentNumber

public int getParentNumber()

Returns the number of parent

getParentAt

public NetObject getParentAt(int idx)

Returns the parent object at the specified index.

Parameters:

idx - Parent index

Returns:

Parent NetObject

isParentOf

public boolean isParentOf(NetObject o)

Returns true if this object is parent of o

isChildOf

public boolean isChildOf(NetObject o)

Returns true if this object is child of o

getLabel

public java.lang.String getLabel()

Returns the label

setLabel

public void setLabel(java.lang.String value)

Sets the free label of this object.

Parameters:

value - Label

setLabel

public void setLabel(java.lang.String[] value)

Sets the free lablel

getName

public java.lang.String getName()

Get object name.

Returns:

'Bubble' or 'Text'

getType

public int getType()

Return the type of this NetObject.

See Also:

OBJECT_BUBBLE, OBJECT_TEXT

getUserType

public int getUserType()

Returns the user defined type.

setShape

public void setShape(int s)

Sets the shape of this object

Parameters:

s - Shape

See Also:

NetShape

getShape

public int getShape()

Returns shape of this object

setEditableShape

public void setEditableShape(boolean b)

Set the editable shape properties.

Parameters:

b - True to make the shape editable (via the NetObjectDlg), false otherwise.

setJustify

public void setJustify(int i)

Sets the label justification of this object.

See Also:

JUSTIFY_LEFT, JUSTIFY_RIGHT, JUSTIFY_CENTER

getJustify

public int getJustify()

Returns current justification

See Also:

setJustify(int)

getMaxInput

public int getMaxInput()

Returns maximum number of incoming link

getMaxOutput

public int getMaxOutput()

Returns maximum number of outgoing link

setCenterLabel

public void setCenterLabel(java.lang.String s)

Sets the label displayed at the center of this object. It uses the NetEditor small font.

setBottomLabel

public void setBottomLabel(java.lang.String s)

Sets the label displayed at the bottom left of this object. It uses the NetEditor small font.

setColor

public void setColor(java.awt.Color c)

Sets the background (fill color) of this object (when parent NetEditor is not editable)

getColor

public java.awt.Color getColor()

Gets the background (fill color) of this object (when parent NetEditor is not editable)

setSize

public void setSize(int size)

Sets the object size

getSize

public int getSize()

Gets the object size

setUserValue

public void setUserValue(java.lang.Object v)

Sets the user value for external usage

getUserValue

public java.lang.Object getUserValue()

Returns the user value

setExtensionList

public void setExtensionList(java.lang.String[] names)

Sets the list of extended parameter name for this bubble object. Text does not accept extensions.

Parameters:

names - List of names

setExtendedParam

public void setExtendedParam(java.lang.String name,
                             java.lang.String value)

Sets the extended param value.

Parameters:

name - Param name

value - Param value

See Also:

setExtensionList(java.lang.String[])

setExtendedParam

public void setExtendedParam(int extIdx,
                             java.lang.String value)

Sets the extended param value.

Parameters:

extIdx - Index of the extensions.

value - param value

See Also:

setExtensionList(java.lang.String[])

getExtendedParam

public java.lang.String getExtendedParam(java.lang.String name)

Returns the value of the specified extended param, an empty string if not found.

Parameters:

name - Param name

Returns:

param value

See Also:

setExtensionList(java.lang.String[])

getExtendedParam

public java.lang.String getExtendedParam(int extIdx)

Returns the value of the specified extended param, an empty string if not found.

Parameters:

extIdx - Index of the extensions.

Returns:

param value

See Also:

setExtensionList(java.lang.String[])

getExtendedParamNumber

public int getExtendedParamNumber()

Returns the number of extensions

getExtendedParamIndex

public int getExtendedParamIndex(java.lang.String name)

Returns the index of the specified extended param , -1 when not found

setTextFont

public void setTextFont(java.awt.Font f)

Set the font of this object. Only TEXT object accept font

Parameters:

f - Font

getTextFont

public java.awt.Font getTextFont()

Get the font of this object

getXOrigin

public int getXOrigin()

Returns X pixel coordinates.Returns a valid value only if this object has been inserted in a NetEditor.

getYOrigin

public int getYOrigin()

Returns Y pixel coordinates.Returns a valid value only if this object has been inserted in a NetEditor.

setSelected

public void setSelected(boolean s)

Select or not this NetObject within the editor.

Parameters:

s - True to select, false otherwise

getSelected

public boolean getSelected()

Returns:

True if this NetObject is selected.

paintLink

public void paintLink(java.awt.Graphics2D g,
                      NetObject child,
                      boolean drawArrow)

Paint the link beetween this object and child.

Parameters:

g - Graphics object

child - child object

drawArrow - true to draw arrow

paint

public void paint(java.awt.Graphics2D g)

Paint this NetObject.

Parameters:

g - Graphics object
