The challenge

The structure of materials used in engineering, electronics, and photonics is inherently dynamic. During synthesis, processing, and operation, materials continuously evolve, and these structural changes ultimately determine their performance and reliability. In structural metals, for example, phase transformations and the motion of crystal boundaries and defects govern mechanical behaviour, while in electronic and optical devices, structural changes are driven by electrical, thermal, or optical stimuli. Understanding these processes requires direct observation of structural evolution under realistic operating conditions.

These phenomena occur over a broad range of spatial and temporal scales, within the three-dimensional volume of materials and often under applied mechanical, electrical, or chemical stimuli. Capturing their evolution in real time remains a major challenge for conventional microscopy and diffraction techniques.

The technique

Dark-field X-ray microscopy (DFXM) combines the structural sensitivity of X-ray diffraction with full-field imaging, enabling direct visualisation of structural transformations within bulk materials in situ and operando.

At the ESRF, beamline ID01 primarily focuses on applications in electronics, energy materials, and catalysis, while ID03 has developed capabilities targeted towards metallurgy, structural materials, and functional ceramics. Both beamlines continue to expand their instrumentation and experimental possibilities. One particular implementation of time-resolved DFXM, based on reflection X-ray geometry, is shown schematically in Figure 1a, together with its realisation at ID01 (Figure 1b).


Click image to enlarge

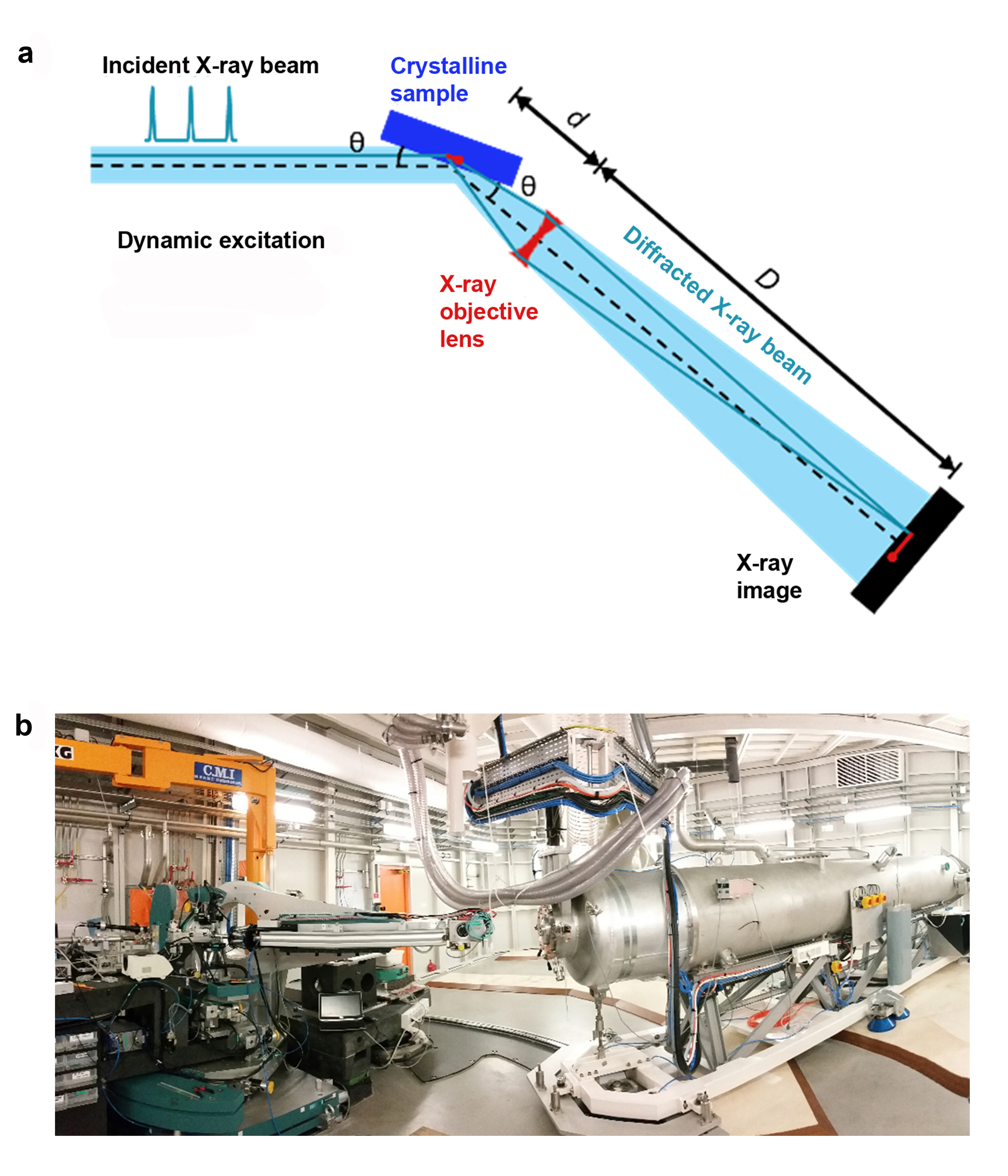

Fig. 1: a) Schematic illustration of the dark-field X-ray microscopy (DFXM) principle in reflection geometry. b) Experimental implementation of DFXM instrument at beamline ID01.

The versatility of time-resolved DFXM has already enabled studies across a broad range of scientific disciplines. Although applications differ considerably, they share a common objective: direct observation of structural evolution with diffraction sensitivity and imaging speed.

In structural materials, for example, DFXM can follow the growth of individual crystalline grains in real time during thermal processing (Figure 2). By tracking grain boundaries as they migrate over periods of several seconds to minutes, the technique provides quantitative measurements of grain size, boundary velocity, interface curvature, and other key parameters that govern microstructural evolution. These observations offer new insight into the fundamental mechanisms of grain growth and provide valuable information for the design and processing of advanced structural materials [1].

Click image to enlarge

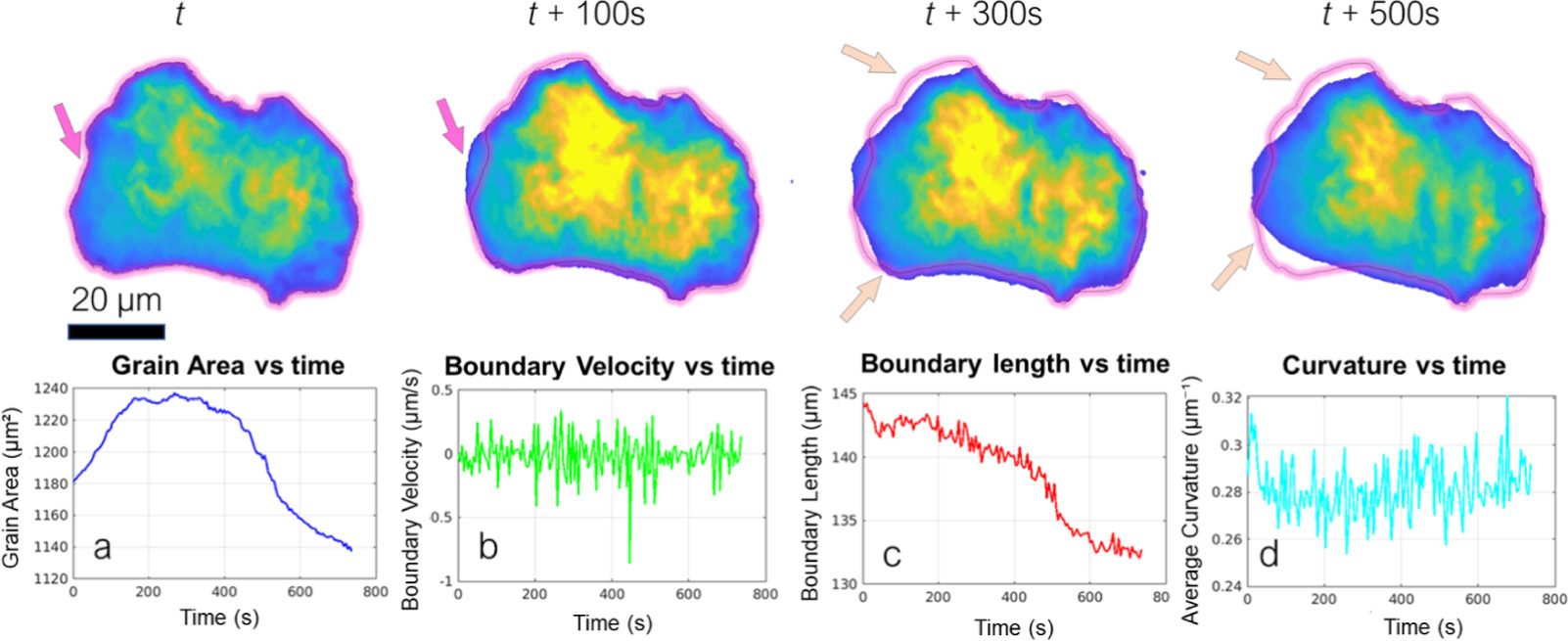

Fig. 2: Dark-field X-ray microscopy employs a broad-spectrum X-ray beam to probe grain growth dynamics over the period of several seconds. a-d) Directly measured grain-growth metrics include the area, boundary velocity, boundary length, and interface curvature. The purple contours indicate the initial grain shape, while the arrows indicate significant grain boundary motion: pink for growth and light pink for shrinkage. Adapted from [1].

At the opposite end of the temporal spectrum, DFXM can be applied to high-frequency electronic devices. Surface acoustic wave (SAW) components, widely used in radiofrequency technologies, operate at frequencies many orders of magnitude faster than electrochemical processes. By synchronising synchrotron X-ray pulses with the electrical excitation signal, stroboscopic DFXM measurements can capture these rapid structural oscillations (Figure 3). The resulting images provide direct insight into the microscopic origins of electromechanical energy dissipation and device degradation, informing the design of more efficient electrical components [2].


Click image to enlarge

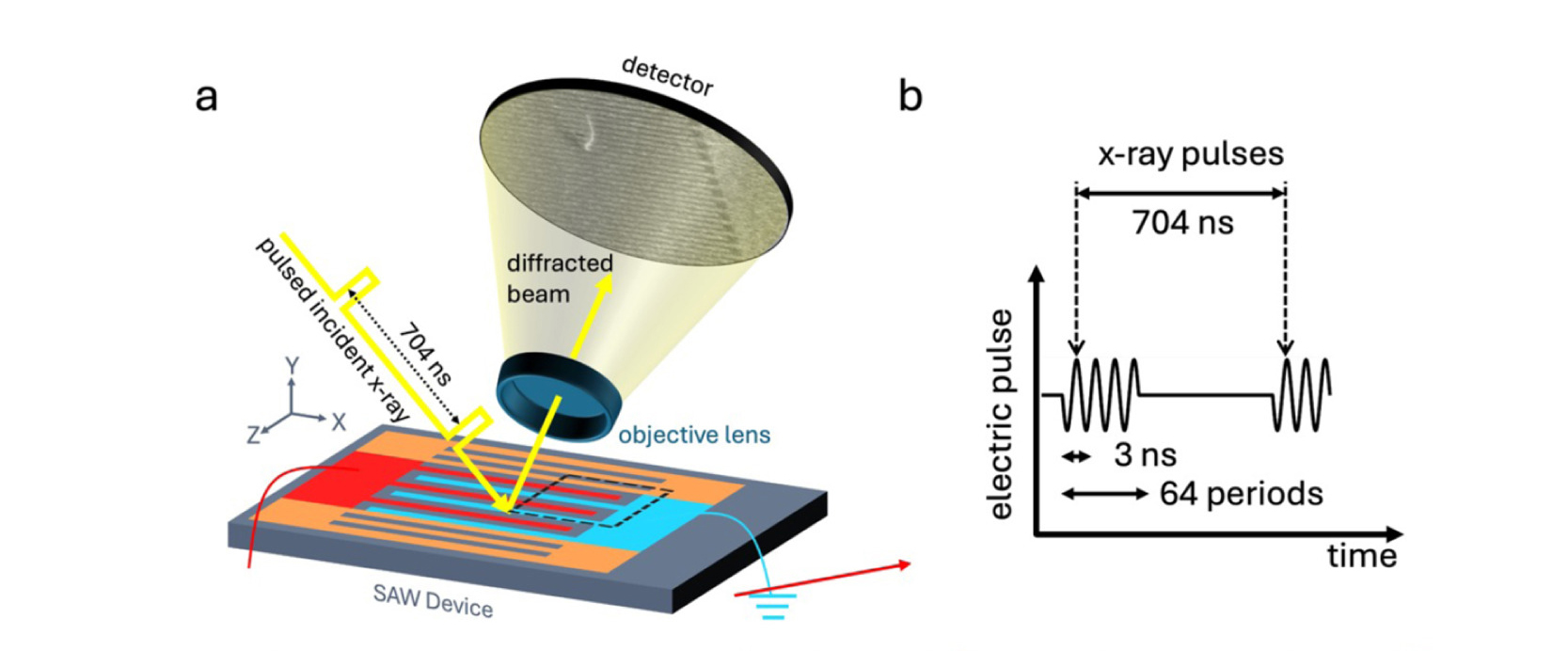

Fig. 3: Dark-field X-ray microscopy images of the nanosecond dynamics of surface acoustic wave devices reveal acoustic phenomena at hundreds of MHz and provide insight into the mechanisms of acoustic loss. The imaging approach (a) relies on (b) stroboscopic synchronisation of the devices with X-ray pulses from the ESRF. Adapted from [2].

These examples illustrate the broad applicability of full-field diffraction imaging, from processes evolving over thousands of seconds to phenomena occurring on microsecond and nanosecond timescales.

The impact

Time-resolved DFXM is rapidly becoming an important tool for the study of material and device dynamics. Recent experiments performed at the ESRF (as shown in Figures 2 and 3) and other advanced X-ray facilities have already demonstrated its potential to connect microscopic structural evolution with macroscopic material performance.

Future developments are expected to expand the range of accessible in situ and operando environments, enable studies of increasingly complex electronic and optoelectronic devices, and extend measurements to processes that occur at even shorter timescales. Continued advances in source brightness, optics, detectors, and data analysis will further improve both spatial and temporal resolution.

As these capabilities mature, time-resolved DFXM is expected to play an increasingly important role in the design of next-generation structural materials, energy technologies, and functional devices, providing direct access to dynamic processes that have previously remained inaccessible.
