Beam delivery

BM29 Optics Hutch

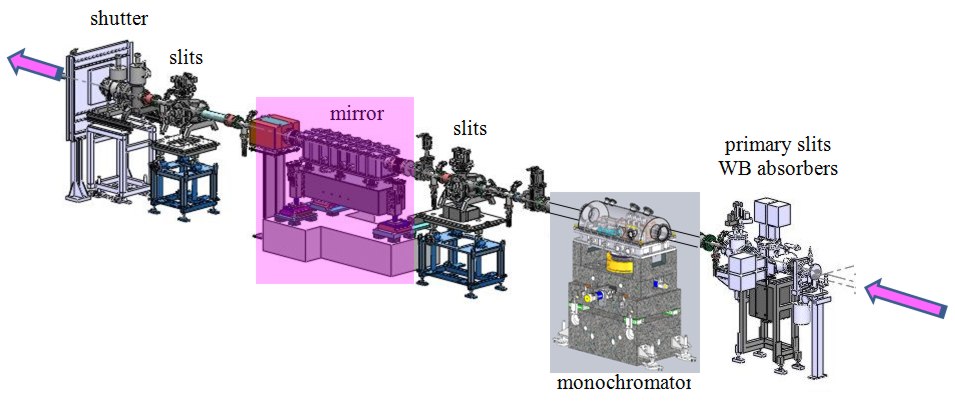

Schema of main elements in BM29 Optics Hutch:



BM29 Experimental Hutch

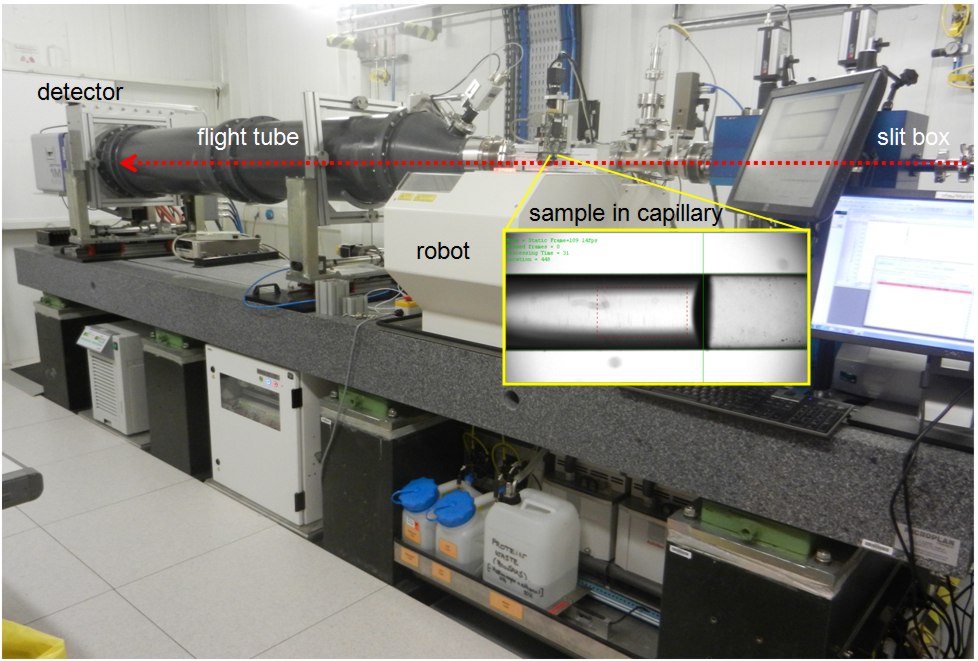

The experimetal hutch is accessed by users when loading samples into sample changer:

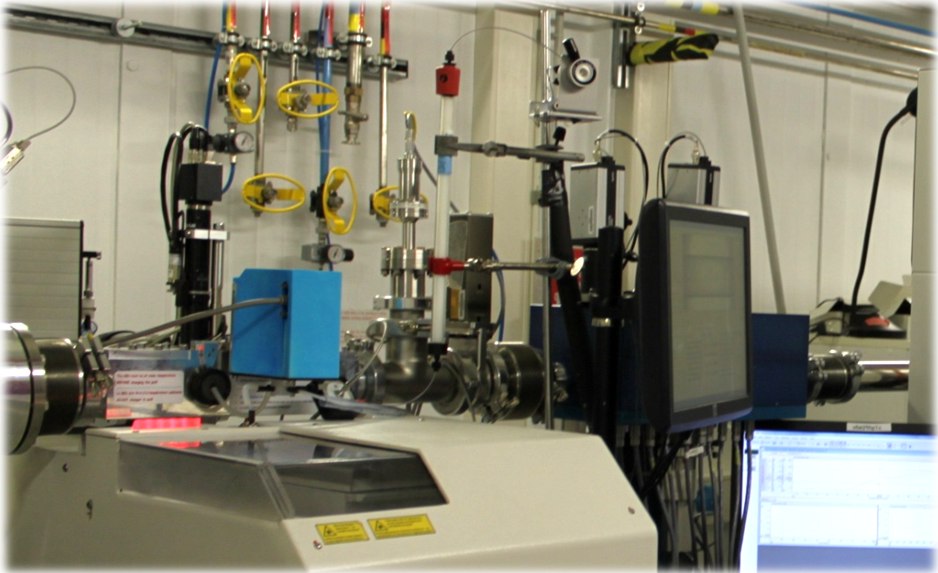

Or to load sample into SEC set-up:

The only elements not visible on previous photographs are fast shutter and beam defining slits located completely upstream.
